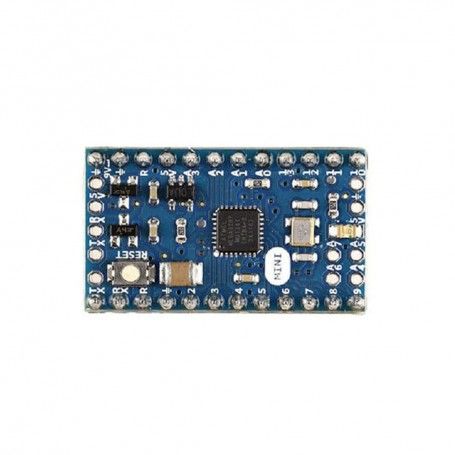

Arduino Pro Mini 3.3V/8M ATMEGA328 (Original)

Κωδικός: 012.011 Επαγγελματικό προϊόν B2B Συνδεθείτε για τιμή χονδρικής

The Arduino Mini is a small microcontroller board intended for use on breadboards and when space is at a premium. The revision 05 has a new package for the ATmega328 (datasheet), which enables all components to be on the top of the board.
It also has an onboard reset button.
The 05 version has the same pin configuration as revision 04.

Περιγραφή

Microcontroller ATmega328
Operating Voltage 5V
Input Voltage 7-9 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8 (of which 4 are broken out onto pins)
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (of which 2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Length 30 mm
Width 18 mm
