Product Details

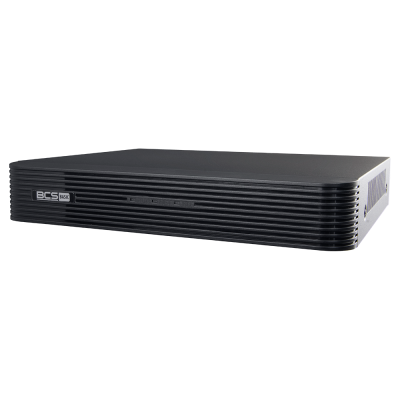

Product BCS-B-NVR0801-8P(2.0)

Brand BCS BASIC

System IP

Pentaplex function Live view / recording / playback / archiving / remote access

Channels 8

HDD support 1

HDD capacity 6 TB

Max recording resolution 8 Mpx

Incoming bandwidth 50Mbps

Outgoing bandwidth 40Mbps

Display efficiency 1×8M(30fps) / 1×5M(30fps) / 2×4M(30fps) / 4×3M(25fps) / 4×2M(30fps) / 8×720P(30fps)

Recording resolutions 8M / 6M / 5M / 4M / 3M / 2M / 960P / 720P / D1 / 2CIF / CIF/ QCIF

Video compression H.265+ / H265 / H.264+ / H.264

HDMI out HDMI4K

VGA out VGA

HDMI display resolutions 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768

VGA display resolutions 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768

Display split 1/4/8

Synchronous playback 1/4/9

Archiving Possibility to download material to external media such as USB FLASH, USB HDD

User connections 128

Interfaces 2×USB2.0

Audio out 1

Support Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Network RJ-45 10/100/1000Mbps

Compatibility ONVIF, support third party cameras

Protocols P2P, UPnP, DHCP

Standard IEEE 802.3 af/at

Switch PoE power 75W max 30W/port

PoE channels 8

Power supply 52V DC

Power consumption (without HDD) max 9W

Working environment -10°C~+55°C max 90% RH

Dimensions (W×D×H) 260×243×46mm

Weight (without HDD) 1.2 kg
