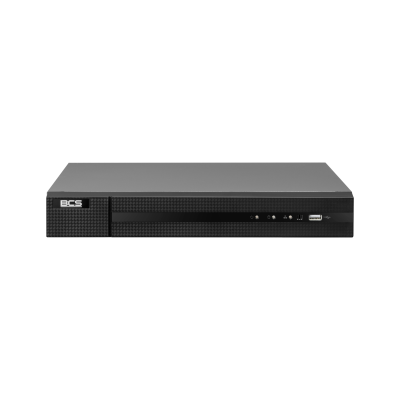

NVR ΚΑΤΑΓΡΑΦΙΚΟ ΚΑΜΕΡΩΝ 4 ΚΑΝΑΛΙΩΝ με POE BCS-B-NVR0401 4P
• Display and record 4 IPC with max resolution 8Mpx
• Compression H.265+/H265/H.264+/H.264
• Max incoming bandwidth 40Mbps, outgoing 80Mbps
• Synchronous HDMI4K(3840×2160) and VGA(1920×1080)
• Advanced video detection: motion detect, crossline, intrusion
• Support 1 HDD SATA up to 6TB
• 1 audio in / 1 audio out
• 2×USB, 1×RJ45
• Built-in 4 port switch PoE 50W
• Built-in web service, support CMS(BCS Manager), mobile app BCS(android, iOS), P2P, Onvif
• Power supply DC 48V
Product Details
Product BCS-B-NVR0401-4P
Brand BCS BASIC
System IP
Pentaplex function Live view / recording / playback / archiving / remote access
Channels 4
HDD support 1
HDD capacity 6 TB
Max recording resolution 8 Mpx
Incoming bandwidth 40Mbps
Outgoing bandwidth 80Mbps
Display efficiency 1×8M(30fps) / 4×2M(30fps)
Recording resolutions 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Video compression H.265+ / H265 / H.264+ / H.264 (ONVIF H.264)
HDMI out HDMI4K
VGA out VGA
HDMI display resolutions 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
VGA display resolutions 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
Display split 1/4
Synchronous playback 1/4
Archiving Possibility to download material to external media such as USB FLASH, USB HDD
User connections 64
Interfaces 2×USB2.0
Audio in 1
Audio out 1
Support Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Network RJ-45 10/100/1000Mbps
Compatibility ONVIF, support third party cameras
Protocols TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP,HTTPS
Standard IEEE 802.3 af/at
Switch PoE power 50W
PoE channels 4
Power supply 48V DC
Power consumption (without HDD) max 10W
Working environment -10°C~+55°C max 90% RH
Casing 1U
Dimensions (W×D×H) 315×240×48mm
Weight (without HDD) 1 kg
