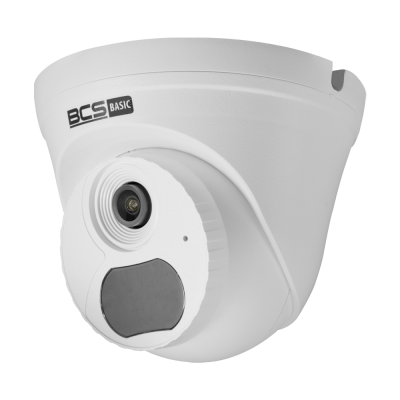

Product BCS-B-EIP14FSR3(2.0)

Brand BCS BASIC

NDAA National Defense Authorization

Act Camera type Dome

Resolution 4 Mpx

Sensor1/3' CMOS

Scanning system Progressive Scan

Pixels 2560(H)×1440(V)

Lens fixed Focal length 2.8 mm Aperture F2.0

Focus fixed

Iris fixed

Compatibility ONVIF (S/T)

Microphone Yes

Audio compression G.711A / G.711U

Angle of view H: 97° V: 54.9° D: 111.9°

DORI Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m

Min illumination 0.003Lux (F2.0,AGC) 0Lux (B/W,IR)

S/N ratio 52dB

White balance (AWB) Auto / manual

WDR DWDR Backlight compensation BLC / HLC / DWDR Shutter Auto / manual 1~1/100000s

Gain control(AGC) Auto / manual

Noise reduction 2D/3D DNR RoI Region of Interest Defog Digital Image rotateMirror, flip 180° Stream support 2

Resolutions 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / (640×360) / 2CIF(704×288) / CIF(352×288)

Main stream 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps

Second stream 640×360@30fps 704×288@30fps 352×288@30fps

Bitrate 128Kbps~6144kbps

Video compression H.265 / H.265+ / H.264 / H.264

Day/night ICRI lluminator type IR LED

IR range 30m

IR wavelength 850nm

Microphone Yes

Audio compression G.711A / G.711U

Support Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) NetworkRJ-45 10/100Mbps

Compatibility ONVIF (S/T)

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP, SNMP

Power supply type PoE(802.3af)

Power consumption max 2.5W

Housing color White

Surge protection 4kV

Working environment -30°C~+60°C max 95% RH

Dimensions Ø118×100mm

Weight 0.19kg

Ai - Built-in intelligent functions Built-in intelligent algorithm of image analisis

Ai - SMD - Smart Motion Detection

Intelligent motion detection with human recognition
