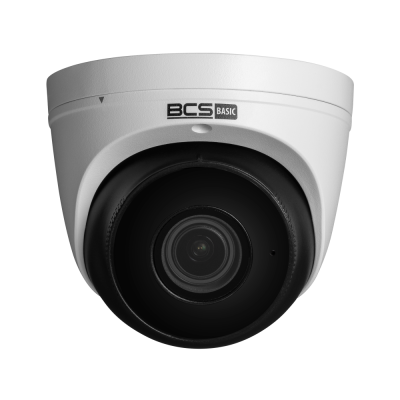

Product BCS-B-EIP45VSR3(2.0)

Brand BCS BASIC

NDAA National Defense Authorization Act

Recording in BCS CLOUD Yes

Camera type Dome

Resolution 5 Mpx

Sensor 1/2.7'' CMOS

Scanning system Progressive Scan

Pixels 2880(H)×1620(V)

Lens motozoom

Focal length 2.8~12 mm

Aperture F1.8

Focus Auto / manual

Iris Auto

Digital zoom 16×

Angle of view H: 102.79°~ 30.86° V: 54.5°~ 17.49° D: 106.94°~ 35.49°

DORI Detect 63~270m / Observe 25~108m / Recognize 13~54m / Identify 6~27m

Min illumination 0.005Lux(F1.8,AGC) 0Lux(B/W,IR)

S/N ratio 56dB

White balance (AWB) Auto / manual

WDR 120dB

Backlight compensation BLC / HLC / WDR(120dB)

Shutter Auto / manual 1~1/100000s

Gain control (AGC) Auto / manual

Noise reduction 2D/3D DNR

Image rotate Mirror, flip 180°

Stream support 2

Resolutions 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) /

2CIF(704×288) / CIF(352×288)

Main stream 2880×1620@25fps 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps

Second stream 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps

Video compression H.265 / H.265+ / H.264 / H.264+ / MJPEG

Day/night ICR

Illuminator type IR LED

IR range 30m

Microphone Yes

Audio compression G.711

Memory card slot microSD 256GB

Support Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect 4

Privacy masking 4

Network RJ-45 10/100Mbps
Compatibility ONVIF(S/G/T)

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS,

RTMP

Power supply type 12V DC / PoE(802.3af)

Power consumption max 6W

Housing color White

IP class IP67

Working environment -30°C~+60°C max 95% RH

Dimensions Ø129×110mm

Weight 0.67kg
